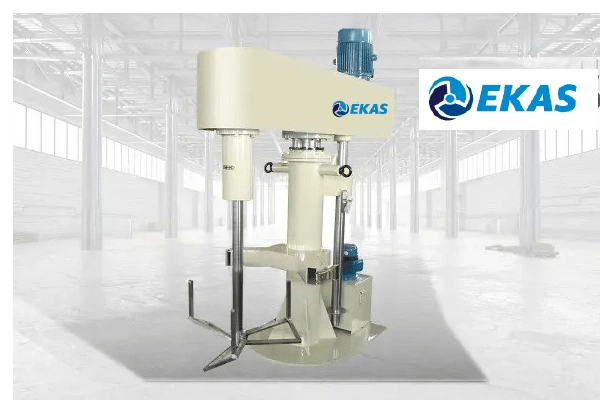

Butterfly Mixer
Product Description
It is high efficiency mixing equipment. The mixing device is three leaf butterfly blade, Vacuumed during mixing process to improve quality.
Product Characteristics:
- Adopt hydraulic cylinder as lifting actuators. Control the mixer up, stop and down through controlling the valve, simply operation and high stability.
- Various impellers are optional based on processing requirements to optimize the mixing result.
- Different clamping type (Belt Clamping, Manual Rotation, Pneumatic Clamping) are optional for fixing the mixing tank to prevent any possible accident due to tank displacement.
Technical Specification
| Type/Parameter | Motor power (Kw) | Blade speed (rpm) | Blade diameter (mm) | Lift height (mm) | Pump motor (Kw) | Tank diameter×height (mm) |
|---|---|---|---|---|---|---|
| BM-600 | 4～11 | 0～130 | 580 | 700 | 0.75 | 600×500 |
| BM-900 | 4～15 | 0～130 | 880 | 900 | 0.75 | 900×750 |
| BM-1000 | 5.5～18.5 | 0～130 | 980 | 1000 | 0.75 | 1000×750 |
| BM-1200 | 5.5～30 | 0～130 | 1120 | 1200 | 1.5 | 1200×1000 |

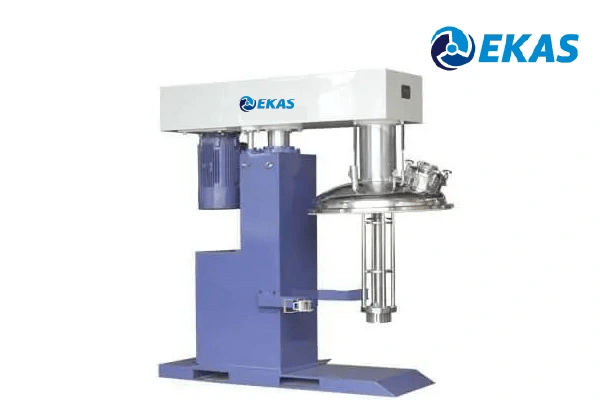

High-shearing emulsifier
Product Description:
- Using electric hydraulic lift.
- Brief operation, swift lifting.
- Could match with pulling cylinders and their fixtures.
- Suited for medium and large sized production.
Technical Specification
| Type | Driving Power (kW) | Handling Ability (L) | Speed (rpm) | A (mm) | B (mm) |
|---|---|---|---|---|---|
| FSY7.5 | 7.5 | 500 | 2900 | 1450 | 1200 |
| FSY11 | 11 | 1000 | 2900 | 1850 | 1400 |
| FSY15 | 15 | 1500 | 2900 | 2050 | 1450 |
| FSY18.5 | 18.5 | 2000 | 1440 | 2250 | 1600 |
| FSY22> | 22 | 2500 | 1440 | 2400 | 1700 |
| FSY37> | 37 | 4000 | 1440 | 2600 | 1900 |
| FSY55> | 37 | 8000 | 980 | 3050 | 2100 |
Dispering reactor＆Tinting reactor
Product Description
- Applicable for concocting finished products or mixing different phases of materials in coating, dyes, pigments, printing inks, pesticide and paper-making industries, etc. It can be fitted with many kinds of mixers, which are suitable for different working conditions.
- As per different requirements, the kettle is able to be made into many types such as vacuum type, normal-pressure type, pressure-proof type, cooling type, heating type and so on.
- Various blades as paddle, frame and anchor with low-speed running can be chosen. Also the kettle, normally with single layer structure can be made into normal –pressure type, pressure- proof type, etc.
Technical Specification
| Type | Diameter (mm) | Height of Kettle (mm) | Dispersing Kettle | Paint Mixing Kettle | |||
|---|---|---|---|---|---|---|---|
| Dispersing Kettle | Paint Mixing Kettle | Power (kW) | Speed (rpm) | Power (kW) | Speed (rpm) | ||
|
500L |
800 |
1000 |
1060 |
11.0 |
0～1450 |
1.1 |
112 |
|
1000L |
1000 |
1250 |
1400 |
15.0 |
0～1450 |
2.2 |
112 |
|
2000L |
1400 |
1540 |
1575 |
30.0 |
0～1450 |
4.0 |
112 |
|
3000L |
1500 |
1880 |
1750 |
37.0 |
0～1450 |
5.5 |
88 |
|
4000L |
1600 |
2180 |
2125 |
45.0 |
0～1450 |
7.5 |
88 |
|
5000L |
1800 |
2235 |
2125 |
55.0 |
0～1450 |
11.0 |
88 |
|
6000L |
1900 |
2360 |
2475 |
75.0 |
0～1450 |
11.0 |
88 |
|
8000L |
2000 |
2720 |
2725 |
90.0 |
0～1000 |
15.0 |
88 |
|
10000L |
2200 |
2820 |
3050 |
110.0 |
0～1000 |
18.5 |
65 |
