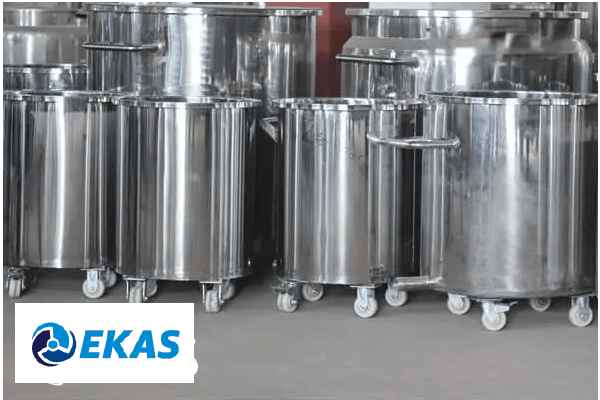

Tank



Product Description:

Ekas Tank SS304 and SS316L Stainless Steel Tank Reactor Vessel or tank mounted with mixers Chemical mixing reactors/reaction vessel/Reaction kettle.

Main Features:
  1. SUS 304 or 316L stainless steel for anti-wear.
  2. Single-layer or double-layer tank optional for different usage.
  3. The reaction tank is fully manufactured according to the production flowchart.
  4. Double layer equipped with inlet and outlet hose for cooling or steam heating functions.
  5. Equipped with heavy-duty rollers, brake function rollers ensure safety while standing by.

Concentric Double Shaft Agitator



Product Description:

It is high efficiency dispersing and mixing equipment, consists of the scrapper agitator and high speed disperser, two sets of agitators working at the same time, mixing the material rapidly under the action of strong shearing and mixing force.

Product Characteristics:
  • Typically handles viscosity up to 100,000 cps.
  • Vacuum dispersing or mixing is available on request.
  • Available in fixed speed or frequency inverter driven variable speed.

Technical Specification


Type/Parameter

Mixer motor(Kw)

Mixer speed(rpm)

Dissolver motor(Kw)

Dissolver speed(rpm)

Tank capacity(L)

CDSA-150

4

50

11

1500

150

CDSA-300

5.5

40

15

1500

300

CDSA-500

7.5

25

22

1500

500

CDSA-1000

11

25

37

1500

1000

CDSA-1500

15

25

55

1500

1500
